Description

Code No. 14020-AN007

*Discontinued.

SET UP KIT for new symmetry turbo set “GT900(GTII7467)” designed for R35 GT-R are newly released.
This kit was designed to utilize the symmetry turbine layout, which is considered ideal, so the overwhelming high performance is expected.

Set Up Kit does not include turbo units.

【Features】

• This product is a set up kit for the symmetry turbine set of GT900.
• Use in combining this product with the symmetry turbine set works as a full turbine kit.

• To provide effective intake and exhaust performance, the suction pipe and chamber pipe were originally designed for this product.
• The exhaust manifold is made with heat-resisting steel, which quality was proved by GT800. High durability against heat and vibration is guaranteed.
• GTII Wastegate was selected because of its compact size, light weight, and reliable boost control.

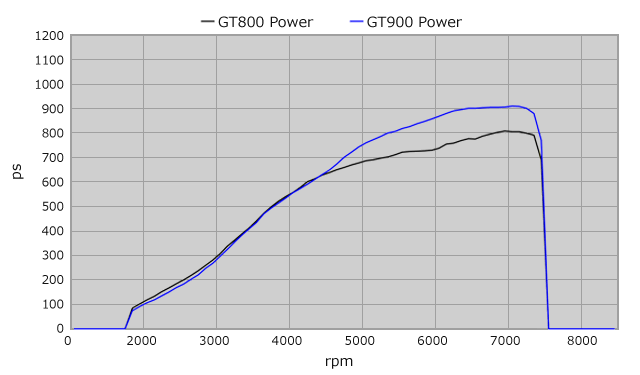

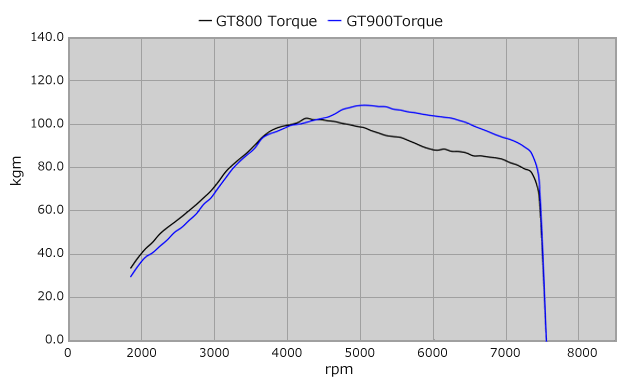

【Performance】

※Some one-off parts are included.

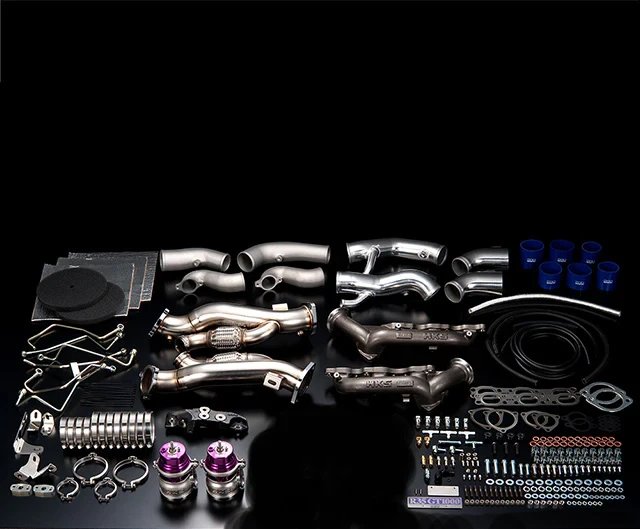

【Main Kit Parts】

※It is recommended to use HKS Racing Suction Reloaded.

【Notes for Installation】

• The engine must be removed in order to install this product.
• This kit does NOT include the symmetry turbine set, fuel pump, injectors, F-CON, EVC, and engine parts
• The factory boost setting of the Wastegate is approximately 90-100kPa.
• Modification of the stock water pipe is required.
• Modification of T/C heat insulator is required.
• This product is for a race use. HKS is not responsible for any damage of the engine and/or transmission caused by use of this product.
• CAT must be removed in order to install this product; therefore, the vehicle with this product cannot drive in a public road.
• The warranty of the vehicle from a dealer may be void after installing this product.
• The symmetry turbo set is not included in this product.

GT-R	R35	VR38DETT	07/12 -		GTII-FTK	GTII 7467(GT900)	88.3kpa～98.1kpa (0.9～1.0kgf/cm2)	14020-AN007		* Discontinued.
